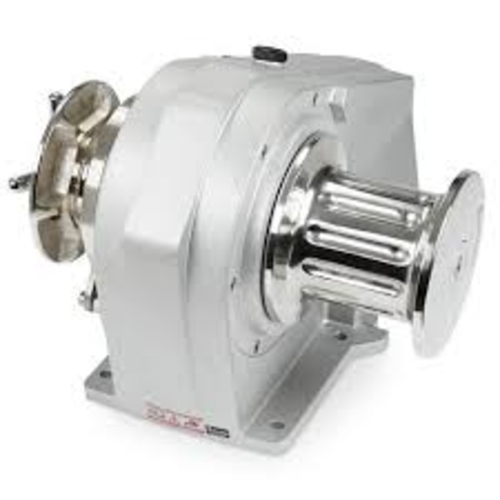

FYN WINDLASS 12V 1000W W/BELL 12mm ITALWINCH

Electric windlass in anodized white aluminum, with horizontal motor. Stainless steel drum independent from the chain wheel. Supplied with a control box. For vessels up to 18m.

TECHNICAL DESCRIPTION

• Horizontal electric windlass with stainless bell separate from the chain gypsy (chainwheel).
• Motor rated 1700 W operating at 12 V.
• Recommended minimum thermal-magnetic circuit breaker 135 A.
• The FYN model fits calibrated chains 12–13 mm and delivers a lifting speed of 14 m/min.
• Maximum load capacity (break load) 1700 kg.
• Working load limit (WLL) 260 kg for efficient anchor retrieval.
• Weight 35 kg.
• For vessels up to 18 m.
