General |
|

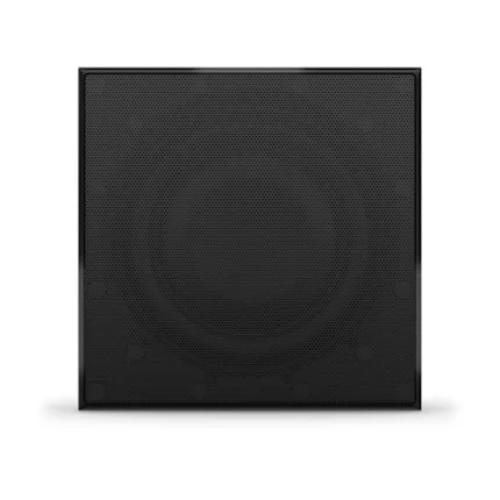

| SIZES | 8″ (Round)/8″ (Square) |
|---|---|
| COLOUR | Luxe satin black or Luxe satin white |
| Physical dimensions (Diameter) | 254 mm (10″) |
| Physical dimensions (Depth) | 8″ (Round): 107 mm (4.2″) 8″ (Square): 105 mm (4.1″) |
| WEIGHT | 3.4 kg (7.5 lbs) |
| water and dust rating | IPX5 |
| Speaker type | Infinite Baffle |
| Continuous power handling (RMS) | 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 83.2 dB |
| Nominal impedance | 8 Ω |
| Recommended amplifier power (RMS) | 50-200 W |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 3 years |
Electrical Features |
|
| Compass safe distance | 235 cm (93″) |
|---|---|
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
Mounting Dimensions |
|
| MAXIMUM MOUNTING PANEL THICKNESS | Minimum: 6 mm (0.25″) Maximum: 41 mm (1.625″) |
|---|---|
| Mounting depth clearance | 96.5 mm (3.8″) |
| Frontal grille protrusion | 8″ (Round): 10 mm (0.4″) 8″ (Square): 9 mm (0.34″) |
| Mounting hole | 229 mm (8.96″) |
| Driver displacement | 1.53 L (0.054 cu ft) |
Parameters |
|
| Free Air Resonance (FS) | 37.98 Hz |
|---|---|
| Electrical “Q” (Qes) | 0.731 |
| Mechanical “Q” (Qms) | 9.471 |
| Total “Q” (Qts) | 0.679 |
| Equivalent Compliance (Vas) | 17.31 L (0.61 cu ft) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 10 mm (0.40″) |
| Effective piston area (SD) | 0.0211 m² (32.705 in²) |
| DC resistance (RE) | 7.24 Ω |
