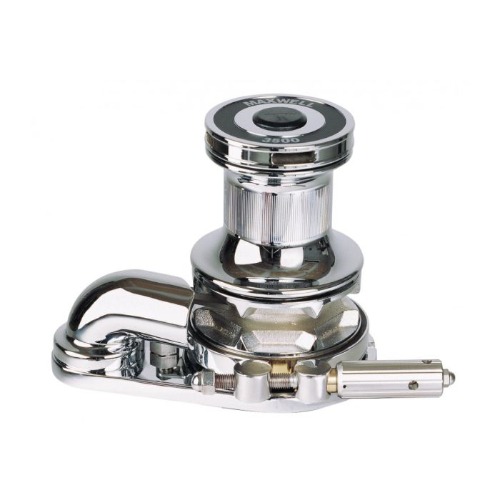

Maxwell Windlass VWCLP2500 HYD CW 85 mm TDC “chainwheel only (9-11 mm short link chain) (clockwise)
| Model | 2500 |
| Maximum pull | 1135 kg (2500 lbs) |
| Static hold | 2200 kg (4840 lbs) |
| Chain short link | 9-11 mm |
| Line speed (normal speed) | 15 m/min or 50 ft/min |
| Power supply (dc) | 12 or 24V |
| Motor (watts) | 1200W |
| Net weight (electric) | 38 kg (84 lbs) |
| For hydraulic version: | |
| Hydraulic pressure | 138 bar 2000 psi |
| Hydraulic flow | 36 lpm or 9.5US gpm |
| Net weight (Hyd) | 32 kg (70 lbs) |
Note: 2500 VWC Suitable for 9-11mm Chain (Chainwheel selected separately)
Model VWC2500 & VWCLP2500 are also available in 185 TDC (Top deck clearance) on request.
All VWC dc models are supplied with reversing solenoid & foot switches. All VWC models come with emergency crank handle & clutch control lever.
VWC windlass includes motor/gearbox, chainwheel and reversing solenoid. Please contact Exalto Emirates to select the chainwheels when ordering your VW windlass. Other electrical accessories need to be ordered separately
